Csp Professional Loudspeaker System



CONNECTS   WEATHER PROTECTION   FINISH/UPWE   QUICKFLY

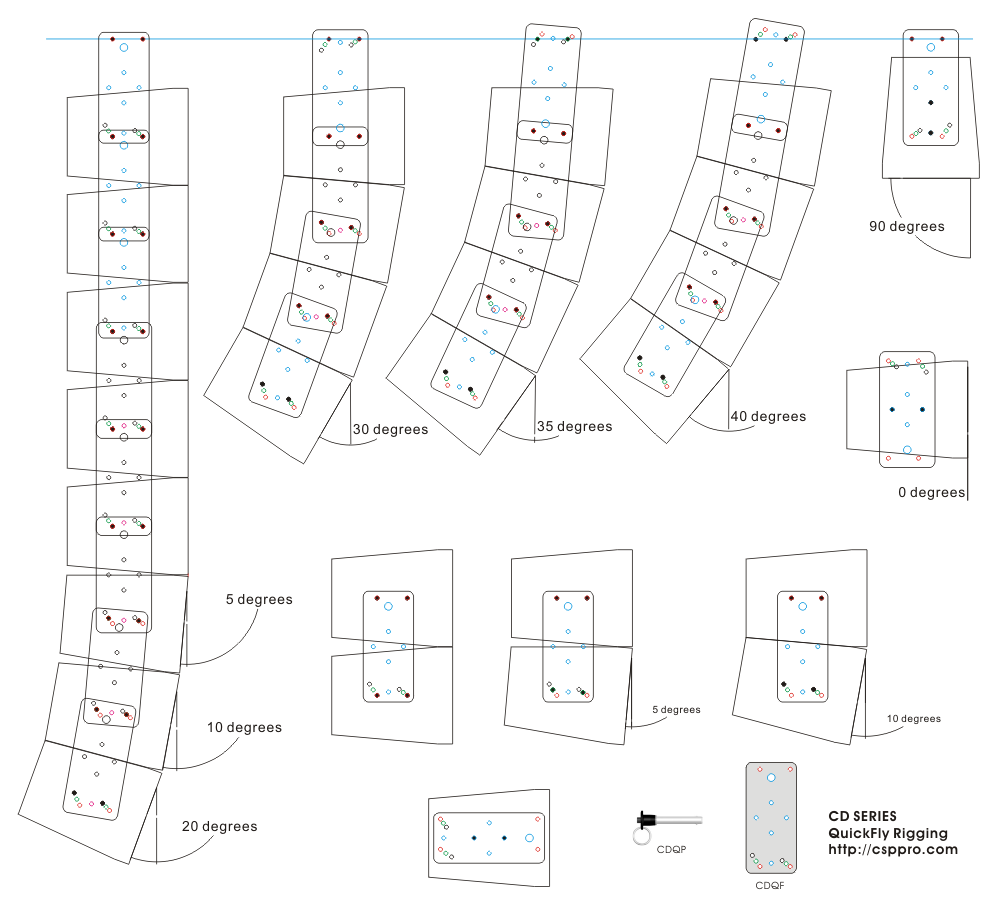

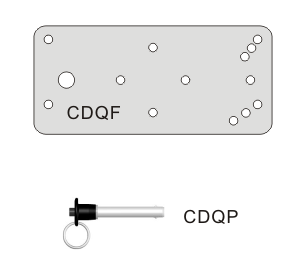

CDQF rigging frame is fitted as standard on all CD series line array loudspeakers. Connect the units for flying and allow from 0 to 10 of cabinet splay.

The splay angle can be increased by an additional 5, 10, or 15. This effectively provides up to 20 splay angle.

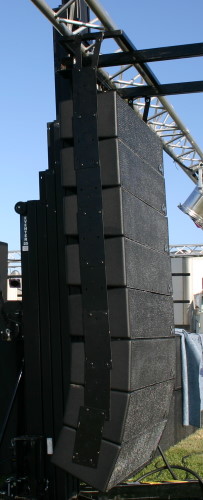

CDQP are used throughout. Rigging connections are rigid, so the array tilt can be adjusted with no change in splay between units.

Connect CD Line Array loudspeakers no more than 32pcs per side.
