Csp Professional Loudspeaker System

Tour sound performance...

11-ply wood...


    • Sound Reinforcement and Portable PA
    • Clubs and DJs
    • Houses of Worship
    • Sport Facilities and Health Clubs
      Rental Systems
    • Keyboard Systems

    • Ferro sound
    • Die-cast aluminum basket
    • High sensitivity, low distortion
    • SP DDP™ (Speaker Distortion Dynamic Protection)
    • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
    • Manufactured with Pride in the United States
    • Dual Neutrik Speakon

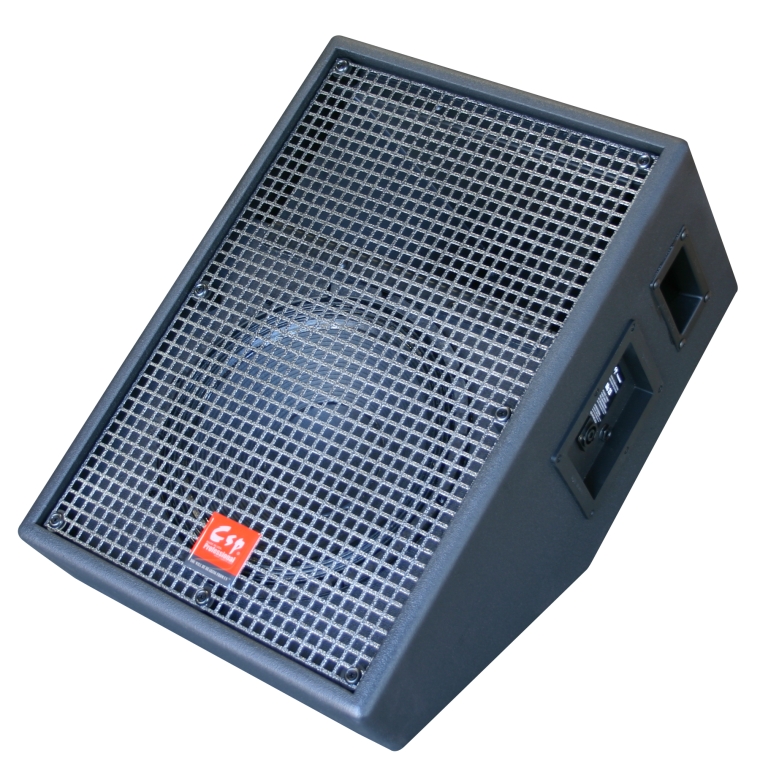

View larger image



  • Loudspeaker Type: Two-Way, Full-Range, Stage Monitor System

  • Frequency Response: 70-20000 Hz

  • Power Handling: 300W RMS/600W Program

  • Recommended Amp: P.PA1

  • Sensitivity at 1W/1M: 100 dB

  • Nominal Impedance: 8 ohms

  • Nominal Dispersion: 90º x 40º(HxV)

  • Crossover: T5; Frequency: 2000 Hz

  • Driver: LF(1) 12LV2AF, HF(1) H450; Horn: 48H1

  • Speaker Protection: SP DDP™ (Speaker Distortion Dynamic Protection)

  • Input Connectors: Dual Neutrik Speakon jacks in parallel

  • Enclosure Material: 11-ply wood 18 mm Baltic birch, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

  • Grille: 18 gauge perforated steel, additional powder coated

  • Unpacked: 22.875" H x 15.875" W x 10.875" D - 35 lbs.

  • Packed: 24.175" H x 17.125" W x 12.125" D - 36.00 lbs.



Csp Professional.( http://www.csppro.com )

5157 Cliffwood Dr., Montclair, CA 91763 Tel: 909 590-5258  Fax: 909 590-1658

Csp Sound Systems are guaranteed against malfunction due to defect in material and workmanship for a period of five full years from the date of purchase. This limited warranty does not apply to burned out voice coils or obvious physical abuse.

Products in this literature are capable of producing damaging sound pressure levels, always use protection. Never suspend speaker systems by handles or unapproved hardware.
