Csp Professional Loudspeaker System

  • APPLICATIONS:

    • Concerts
    • Clubs
    • Mobile DJ
    • Houses of Worship
    • Entertainment
  • FEATURES:
    • Four 12" (300 mm) Woofers
    • High sensitivity, low distortion
    • SP DDP™ (Speaker Distortion Dynamic Protection)
    • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
    • compression driver with titanium diaphragm
    • Manufactured with Pride in the United States
    • Neutrik Speakon

Features

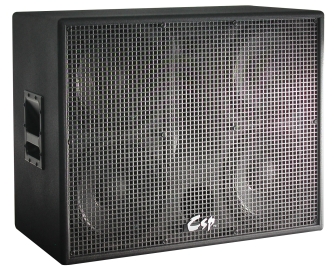

RS323C

  • Loudspeaker Type: Three-Way, Full Range Bass Reflex System

  • Frequency Response: 60-20000 Hz

  • Power Handling: 600W RMS/1200W Program

  • Recommended Amp: 1200W to 1400W @ 4 Ohms

  • Sensitivity at 1W/1M: 103.5 dB

  • Nominal Impedance: 8 ohms

  • Nominal Dispersion: 90º x 50º(HxV)

  • Crossover Frequency: 1500Hz; 10000 Hz

  • Driver: Four 12" woofers, One 1" MF/HF compression driver/ One PZT VHF on pattern control horn on pattern control horn

  • Speaker Protection: SP DDP™ (Speaker Distortion Dynamic Protection)

  • Input Connectors: Dual Neutrik Speakon jacks in parallel

  • Enclosure Material: UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

  • Dimensions: Height/26.75 inches, Width/33.5 inches, Depth/18 inches

  • Weight: 129 lbs.

  • Shipping Weight: 135 lbs.

Csp

WARRANTY and WARNING

Csp Professional.( http://www.csppro.com )

5157 Cliffwood Dr., Montclair, CA 91763 Tel: 909 590-5258  Fax: 909 590-1658

Csp Sound Systems are guaranteed against malfunction due to defect in material and workmanship for a period of five full years from the date of purchase. This limited warranty does not apply to burned out voice coils or obvious physical abuse.

Products in this literature are capable of producing damaging sound pressure levels, always use protection. Never suspend speaker systems by handles or unapproved hardware.
