Csp Professional Loudspeaker System

Music playback....

Offer 3dB Extra Bass...

  • APPLICATIONS:

    • Outdoor performance
    • Arenas / Sports Venues
    • Houses of Worship
    • Performing Arts Centers
    • Theaters
    • Dance Clubs
    • Concerts
  • FEATURES:
    • Die-cast aluminum basket
    • Dual 18" (460 mm) Woofers, 4" voice coil
    • Bass-Reflex Subwoofer
    • High sensitivity, low distortion
    • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
    • Manufactured with Pride in the United States
    • Neutrik Speakon

Features

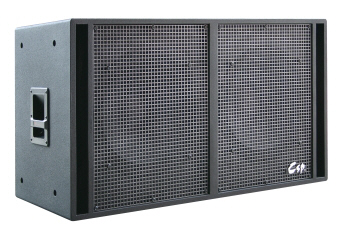

ProM201

  • Loudspeaker Type: Direct-Radiating Bass-Reflex Subwoofer

  • Frequency Response: 35-1800 Hz

  • Power Handling: 1600W RMS/3200W Program

  • Recommended Amp: 1600W to 3200W @ 4 Ohms

  • Sensitivity at 1W/1M: 103 dB

  • Nominal Impedance: 4 ohms

  • Crossover: TB2

  • Recommended Crossover Frequency: 150 Hz

  • Driver: LF(2) 15EV4

  • Input Connectors: Dual Neutrik Speakon jacks in parallel

  • Enclosure Material: 19 mm MDF wood, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

  • Grille: 18 gauge perforated steel, additional powder coated

  • Unpacked: 26.375" H x 45.75" W x 20.375" D - 209.00 lbs.

  • Packed: 27.675" H x 47" W x 21.625" D - 218.00 lbs.


Csp

WARRANTY and WARNING

Csp Professional.( http://www.csppro.com )

5157 Cliffwood Dr., Montclair, CA 91763 Tel: 909 590-5258  Fax: 909 590-1658

Csp Sound Systems are guaranteed against malfunction due to defect in material and workmanship for a period of five full years from the date of purchase. This limited warranty does not apply to burned out voice coils or obvious physical abuse.

Products in this literature are capable of producing damaging sound pressure levels, always use protection. Never suspend speaker systems by handles or unapproved hardware.
