Csp Professional Loudspeaker System

Music playback....

Offer 3dB Extra Bass...

  • APPLICATIONS:

    • Outdoor performance
    • Sound Reinforcement and Portable PA
    • Clubs and DJs
    • Houses of Worship
    • Sport Facilities and Health Clubs
      Rental Systems
    • Keyboard Systems
  • FEATURES:
    • Bass-Reflex Subwoofer
    • Die-cast aluminum basket
    • 3" voice coil, Four 15" (380 mm) Woofer
    • High sensitivity, low distortion
    • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
    • Manufactured with Pride in the United States
    • Dual Neutrik Speakon

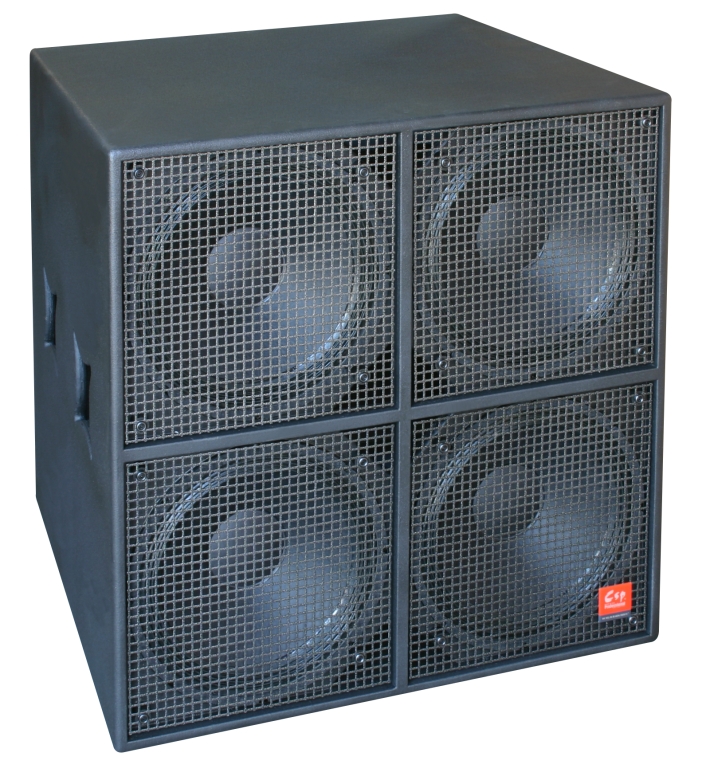

View larger image

Features

Ms 81

  • Loudspeaker Type: Direct-Radiating Bass-Reflex Subwoofer

  • Frequency Response: 35-2500 Hz

  • Power Handling: 2400W RMS/4800W Program

  • Recommended Amp: P.PA Series

  • Sensitivity at 1W/1M: 105 dB

  • Nominal Impedance: 8 ohms

  • Crossover: TB1

  • Recommended Crossover Frequency: 150 Hz

  • Driver: LF(4) 15LV3

  • Input Connectors: Dual Neutrik Speakon jacks in parallel

  • Enclosure Material: 11-ply wood 18 mm Baltic birch, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

  • Grille: 18 gauge perforated steel, additional powder coated

  • Unpacked: 33.375" H x 33.375" W x 30" D - 175.00 lbs.

  • Packed: 34.675" H x 34.625" W x 31.25" D - 186.00 lbs.


Csp

WARRANTY and WARNING

Csp Professional.( http://www.csppro.com )

5157 Cliffwood Dr., Montclair, CA 91763 Tel: 909 590-5258  Fax: 909 590-1658

Csp Sound Systems are guaranteed against malfunction due to defect in material and workmanship for a period of five full years from the date of purchase. This limited warranty does not apply to burned out voice coils or obvious physical abuse.

Products in this literature are capable of producing damaging sound pressure levels, always use protection. Never suspend speaker systems by handles or unapproved hardware.
