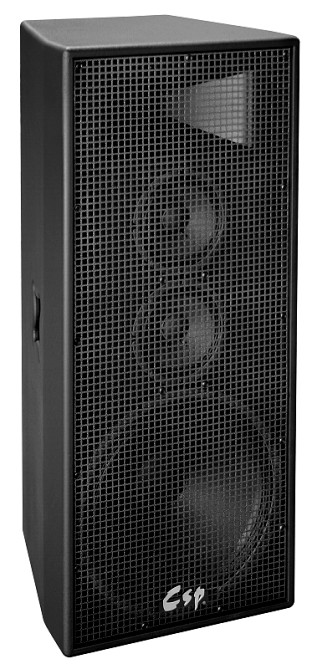

CLX938

live performance, music playback or speech...

CLX Three Way Series

  • APPLICATIONS:

    • Concerts
    • Clubs
    • Mobile DJ
    • Houses of Worship
    • Live performance stage monitoring
    • Entertainment
  • FEATURES:
    • LV3 Technology
    • Trapezoid Design
    • Die-cast aluminum basket
    • Bi-amplified or full-range passive operation
    • SP DDP™ (Speaker Distortion Dynamic Protection)
    • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
    • Neutrik Speakon & Dual 1/4 Phone Jacks in Parallel
    • Manufactured with Pride in the United States
    • Flying version, the CLX938F is available



CLX938

Features

  View larger image Spec Sheet Users guide
  • Loudspeaker Type: 3-way, bass-reflex

  • Frequency Response: 30-20000 Hz

  • Power Handling: 600W RMS/1200W Program/2400W Peak

  • Recommended Amp: P.PA Series

  • Sensitivity at 1W/1M: 100 dB

  • Nominal Impedance: Passive/8 ohms, Bi-amp LF/8 ohms, Bi-amp HF/4 ohms

  • Nominal Dispersion: 90º x 40º(HxV)

  • Crossover: T4; Frequency: 800 Hz; 2000 Hz

  • Driver: LF(1) 18LV3, MF(2) 8EV, HF(1) H451; Horn: 48H

  • Speaker Protection: SP DDP™ (Speaker Distortion Dynamic Protection)

  • Crossover Modes: Bi-amp / passive, externally switchable

  • Enclosure Material: 19 mm MDF wood, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

  • Grille: 18 gauge perforated steel, additional powder coated

  • Unpacked: 45.375" H x 19.875" W x 20.375" D - 105.50 lbs.

  • Packed: 46.675" H x 21.125" W x 21.625" D - 111.00 lbs.


Csp

WARRANTY and WARNING

Csp Professional.( http://www.csppro.com )

5157 Cliffwood Dr., Montclair, CA 91763 Tel: 909 590-5258  Fax: 909 590-1658

Csp Sound Systems are guaranteed against malfunction due to defect in material and workmanship for a period of five full years from the date of purchase. This limited warranty does not apply to burned out voice coils or obvious physical abuse.

Products in this literature are capable of producing damaging sound pressure levels, always use protection. Never suspend speaker systems by handles or unapproved hardware.
