Tour sound performance...

11-ply wood...

• APPLICATIONS:

  • Sound Reinforcement and Portable PA
  • Clubs and DJs
  • Houses of Worship
  • Sport Facilities and Health Clubs
    Rental Systems
  • Keyboard Systems
• FEATURES:
  • Four 12" (300 mm) Woofers
  • Die-cast aluminum basket
  • High sensitivity, low distortion
  • SP DDP™ (Speaker Distortion Dynamic Protection)
  • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
  • compression driver with titanium diaphragm
  • Manufactured with Pride in the United States
  • Dual Neutrik Speakon

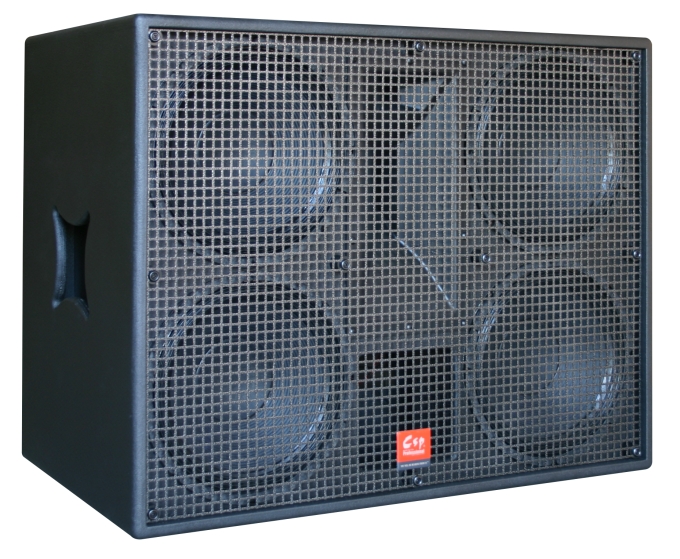

View larger image

• Loudspeaker Type: Three-Way, Full Range Bass Reflex System

• Frequency Response: 60-20000 Hz

• Power Handling: 600W RMS/1200W Program

• Recommended Amp: P.PA3

• Sensitivity at 1W/1M: 103.5 dB

• Nominal Impedance: 8 ohms

• Nominal Dispersion: 90º x 50º(HxV)

• Crossover; T12; Frequency: 2000Hz; 10000 Hz

• Driver: LF(4) 12LV2AF, HF(1) H451, VHF(1) 1016; Horn: 58H

• Speaker Protection: SP DDP™ (Speaker Distortion Dynamic Protection)

• Input Connectors: Dual Neutrik Speakon jacks in parallel

• Enclosure Material: 11-ply wood 18 mm Baltic birch, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

• Grille: 18 gauge perforated steel, additional powder coated


• Unpacked: 26.375" H x 33.375" W x 18" D - 111.50 lbs.

• Packed: 27.675" H x 34.625" W x 19.25" D - 116.00 lbs.
