Tour sound performance...

11-ply wood...

• APPLICATIONS:

  • Sound Reinforcement and Portable PA
  • Clubs and DJs
  • Houses of Worship
  • Sport Facilities and Health Clubs
    Rental Systems
  • Keyboard Systems
• FEATURES:
  • Trapezoid Design
  • Die-cast aluminum basket
  • LV3 Technology
  • High sensitivity, low distortion
  • SP DDP™ (Speaker Distortion Dynamic Protection)
  • UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish
  • Manufactured with Pride in the United States
  • Dual Neutrik Speakon

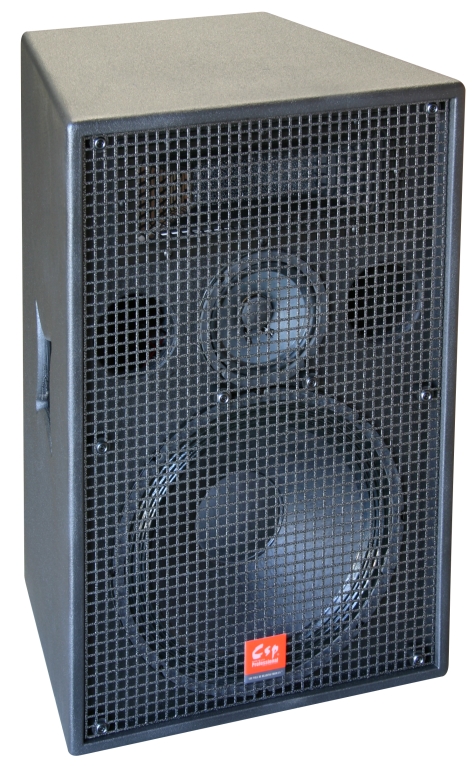

View larger image

• Loudspeaker Type: Three-Way, Full Range Bass Reflex System

• Frequency Response: 60-20000 Hz

• Power Handling: 600W RMS/1200W Program

• Recommended Amp: P.PA2

• Sensitivity at 1W/1M: 99.5 dB

• Nominal Impedance: 8 ohms

• Nominal Dispersion: 90º x 90º(HxV)

• Crossover: T3; Frequency: 800Hz; 3500 Hz

• Driver: LF(1) 15LV3, MF(1) 6EV, HF(1) H452; Horn: 39H

• Speaker Protection: SP DDP™ (Speaker Distortion Dynamic Protection)

• Input Connectors: Dual Neutrik Speakon jacks in parallel

• Enclosure Material: 11-ply wood 18 mm Baltic birch, UPWE™ (Ultrachrome Protecting wood enclosures) black polyurea finish

• Grille: 18 gauge perforated steel, additional powder coated


• Unpacked: 29.875" H x 19.875" W x 16.875" D - 64.00 lbs.

• Packed: 31.175" H x 21.125" W x 18.125" D - 67.00 lbs.
